Silverstone TJ09 Pictorial

- - - - -

  • Please log in to reply
2 replies to this topic

#1
Marcus

Marcus

    Speed & Tickets

  • Administrators
  • 7,305 posts
Silverstone TJ09 - Black - Plain Side Panel Version

Finally got my hands on it... waited more than 3 weeks for it to turn up. :mad:

Ships in a biiiiiig box, with your typical sort of case pictures on the side.

Posted Image

Well packed with a few inches of foam surrouding the case.

Posted Image

Posted Image

Posted Image

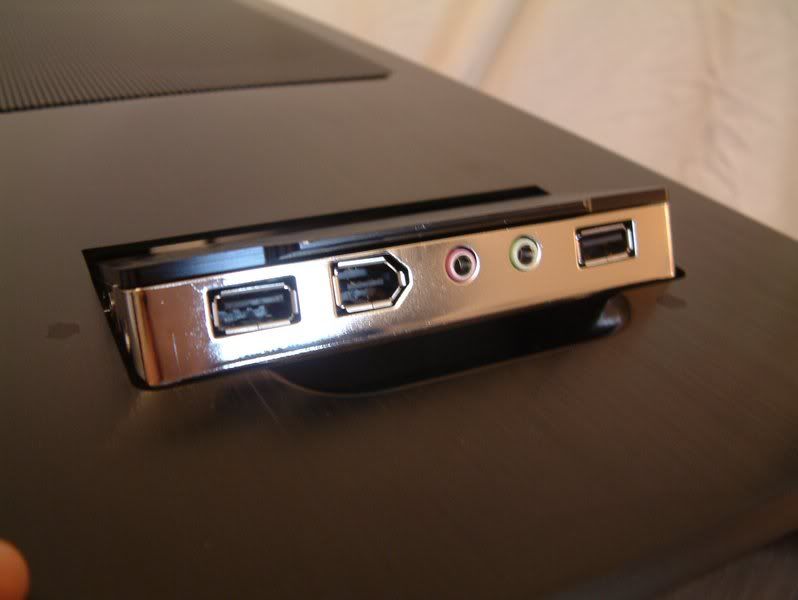

Top Panel USB and Headphone sockets

Posted Image
Posted Image

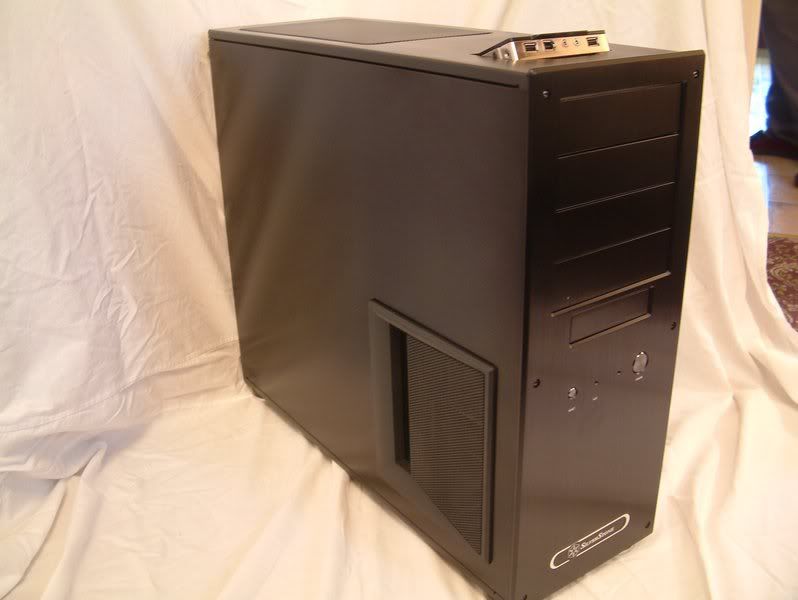

Silverstone Logo on the front panel! ;)

Posted Image

Rear of the case, 120mm fan on the rear to act as an exhaust!

Posted Image

Few snaps of the case internals for you to have a gander at...

Posted Image
Posted Image
Posted Image
Posted Image

Roof panel, can support a 240mm rad with the use of the TJ09 Support brackets.

Posted Image

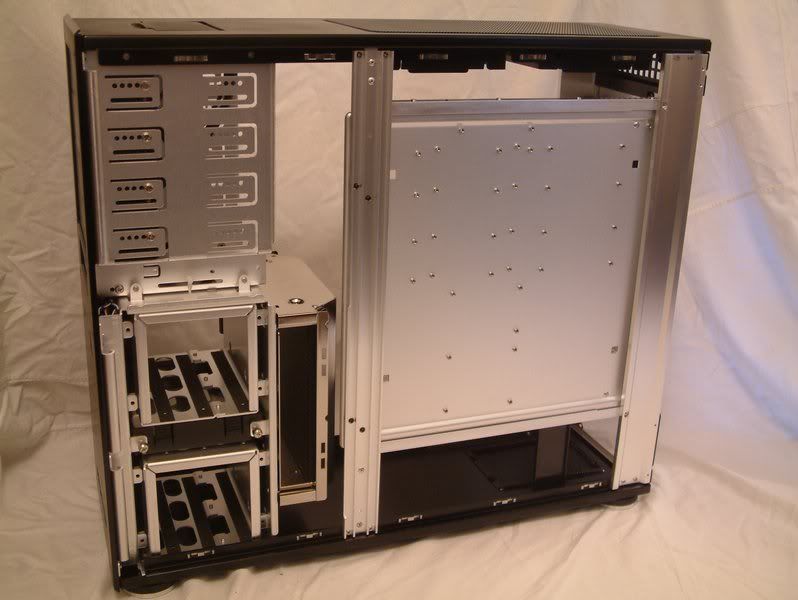

Rear of the motherboard tray and also shows the hard drive cages in the front of the case

Posted Image

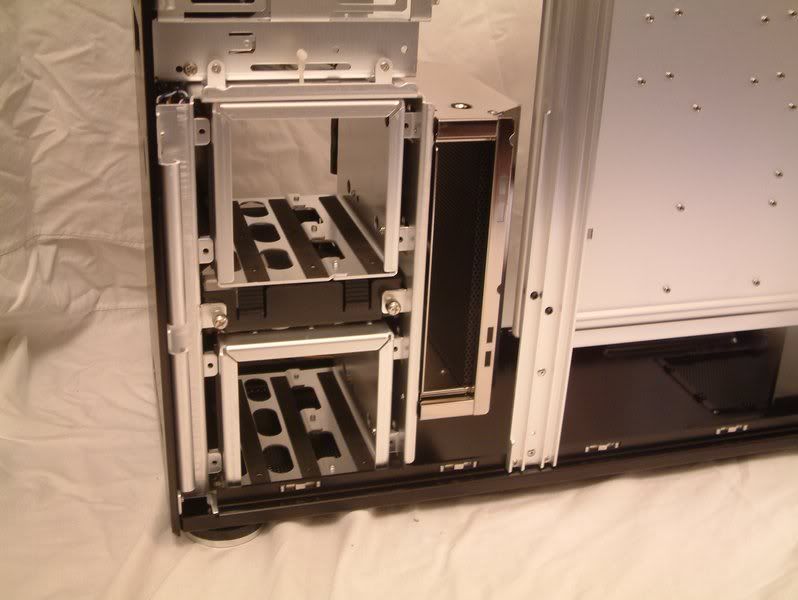

Hard Drive Cages

Posted Image


Yeh yeh I got a little snap happy :o

Edited by Marcus, 08 April 2009 - 01:15 AM.



#2
IanF

IanF

    Level 10

  • Moderators
  • 2,896 posts
Nice case, but looks difficult to add water cooling rads internally!



#3
Richi

Richi

    Level 3

  • Members
  • PipPipPipPip
  • 270 posts

Nice case, but looks difficult to add water cooling rads internally!


LOL no way!!!! i have a triple 120mm in roof! :P :P

also silverstone sell a 120.2 bracket for the roof.

Not a great pic but well

Posted Image

as you can see paired with a XSPC dual bay pump res combo keeps the tubing up in the top of the case... well designed if you ask me... just wish the TJ07 had this layout inside.
Posted Image
