Which Quad rads will fit in a TJ07 bottom?

- - - - -

  • Please log in to reply
5 replies to this topic

#1
Phoenixdancer

Phoenixdancer

    Eyefinity Guru

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,887 posts
Hey all

Im going to be replaceing my ThermoChill PA 120.3 with a Quad rad but i need to know which ones fit.

I cant use a PSU mount on mine because with the fans the PA is so thick the PSU hardly has 1mm at the side so its squashed up against the case wall.
This annoys me greatly because i have a nice shiny back plate i want to use!

SO i want a Quad rad that is "thinner" then the PA and gives the same performance and i can fit it in the same place.

What we got out there that will do it?
I saw this on ebay... will it work?
http://www.ebay.co.u...=item19ceb21bea

My Rig:
I7 3770k @ 4.8Ghz
16GB DDR3
Asus Maximus V MATX
2 x AMD 290X @ 1100/1300
XFX 1KW Platinum PSU
Parvum Custom made - Soon Core P5 Wall case
Cooling: 2 x ET45 Alphacool Copper, 2x 290x EK, 1x EK HF, D5, EK Tube, 10/13 White Tube.
Phillips 4k 40" Monitor


#2
TheGecko

TheGecko

    Level 1

  • Members
  • Pip
  • 26 posts

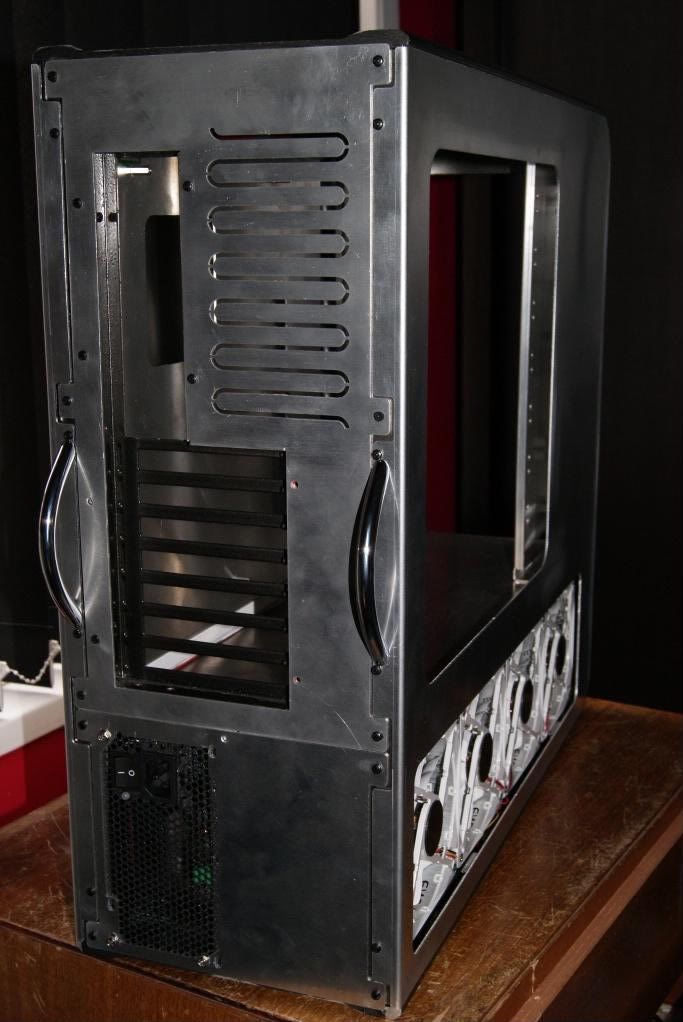

ThermoChill PA120.4 in my TJ07 (only real shot of it in the machine, I'm afraid) ( I realise you can't use the PA, but it shows they fit, which might help)

Posted Image

#3
Phoenixdancer

Phoenixdancer

    Eyefinity Guru

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,887 posts
Your psu. is there room for a psu bracket in there?

My Rig:
I7 3770k @ 4.8Ghz
16GB DDR3
Asus Maximus V MATX
2 x AMD 290X @ 1100/1300
XFX 1KW Platinum PSU
Parvum Custom made - Soon Core P5 Wall case
Cooling: 2 x ET45 Alphacool Copper, 2x 290x EK, 1x EK HF, D5, EK Tube, 10/13 White Tube.
Phillips 4k 40" Monitor


#4
andybones12

andybones12

    Level 10

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 4,148 posts

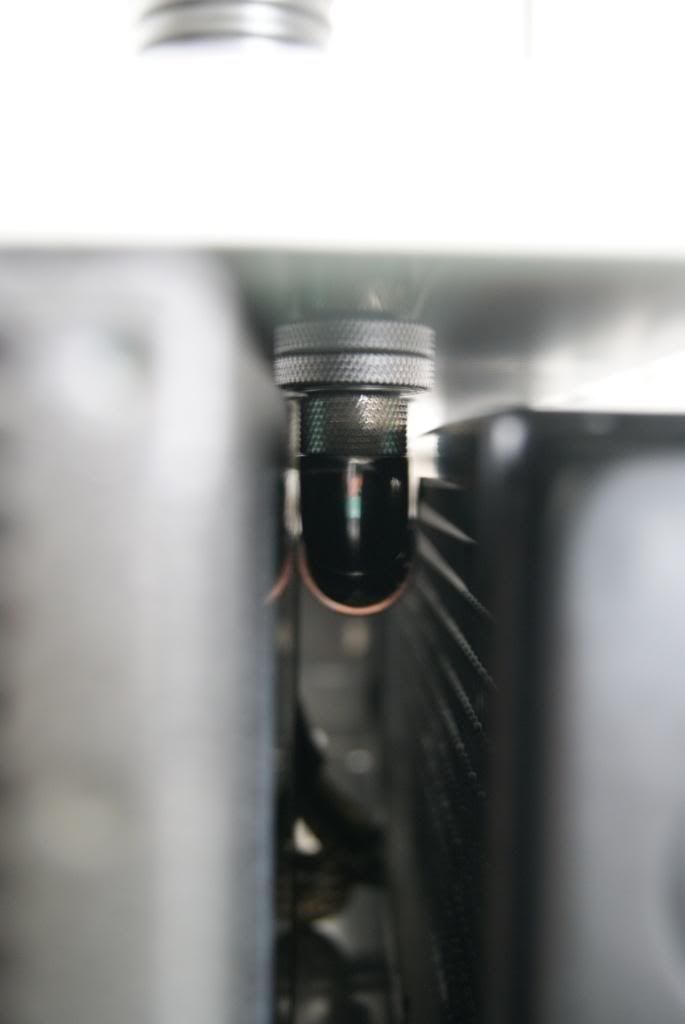

i had a TFC Xchanger 480 in my TJ07,agghh them were the days.
As you can see it was a tight fit
Posted Image
Posted Image
ThermoChill PA120.4 is same thickness as the Xchanger,so i can't see what your problem is Posted Image

Andy

#5
Phoenixdancer

Phoenixdancer

    Eyefinity Guru

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,887 posts
yea i know, Im finding it hard to understand aswell....

Its a 25mm fan with a 3mm rad bracket and a PC120.3... about 1mm between PSU and rad and the PSU is shoved right in the corner :/

Its sorted now anyway, I have an Alphacool XT45 Quad rad on its way, pure copper design and its only 45mm thick vs the 60mm thick PA120.3
Should allow the use of a bulkhead in the mid plate aswell

My Rig:
I7 3770k @ 4.8Ghz
16GB DDR3
Asus Maximus V MATX
2 x AMD 290X @ 1100/1300
XFX 1KW Platinum PSU
Parvum Custom made - Soon Core P5 Wall case
Cooling: 2 x ET45 Alphacool Copper, 2x 290x EK, 1x EK HF, D5, EK Tube, 10/13 White Tube.
Phillips 4k 40" Monitor


#6
Phoenixdancer

Phoenixdancer

    Eyefinity Guru

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,887 posts
got a nice new Alphacool rad.

Upon shakeing it it seems to make a noise, as if something (mabey metal shaveings) are bounceing around inside..

last thing i want is that sort of thing getting into my block.

Anyone know a good way of flushing thing type of thing?

I was going to hook it up to a high pressure tap in my house and just turn it on and off a few times to see if it would flush any crap out, But wet filings would most likely stick to the walls and "sound" gone untill dry again.

Anyone got any ideas?

My Rig:
I7 3770k @ 4.8Ghz
16GB DDR3
Asus Maximus V MATX
2 x AMD 290X @ 1100/1300
XFX 1KW Platinum PSU
Parvum Custom made - Soon Core P5 Wall case
Cooling: 2 x ET45 Alphacool Copper, 2x 290x EK, 1x EK HF, D5, EK Tube, 10/13 White Tube.
Phillips 4k 40" Monitor
