Well i it's time to build again,so i will keep it short as poss.
As an avid Elder Scrolls player over the years,i thought i would use a dragon theme in the build.
I'll be keeping my current hardware till some good stuff comes out.
Current specs.
Asus P67 Pro
580 GTX
I5 2500k
60 Gig Vertex boot Drive
750 Samsung
16 Gb OCZ Ram
PSU AX1200
30'' Dell

Currently using my home-made Bench test Station while i plan and work on new build.Here it is

Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 768x824.Posted Image
My old case.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 1024x685.Posted Image

Sadly i had to pass my old TJ07 on to my brother as a xmas pressy,He needed it more than i did.Posted Image
So i bought a Lian Li V2000 from a friend from WCUK (Thanks ACE)Posted Image
I always liked the size and space this case can hold.
This is what i got of him.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 2048x1536.Posted Image
Looks better in this photo.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 1023x680.Posted Image
So first thing was to cut out the parts i won't need and leave a frame to work with.
Posted ImageI know,it does look severe Posted Image
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 768x1024.Posted Image

This is the latest stage of my build,untill next time Posted Image

Andy

#2
BulletMagnet

BulletMagnet

    Level 7

  • Members
  • PipPipPipPipPipPipPipPip
  • 652 posts
Well, I'm looking forward to how it's gonna turn out.
That looks like a severe diet tho, lol
Posted Image

#3
ACE1981

ACE1981

    WaterCooling/Modding ftw

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,515 posts
[quote name='andybones12' timestamp='1329424395' post='182726']
Well i it's time to build again,so i will keep it short as poss.
As an avid Elder Scrolls player over the years,i thought i would use a dragon theme in the build.
I'll be keeping my current hardware till some good stuff comes out.
Current specs.
Asus P67 Pro
580 GTX
I5 2500k
60 Gig Vertex boot Drive
750 Samsung
16 Gb OCZ Ram
PSU AX1200
30'' Dell


Good luck andy :) looking forward to seeing my old case looking the biz again :D

PROJECT EARTH


#4
andybones12

andybones12

    Level 10

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 4,149 posts
Cheers guys ;)
Will do my best with your old case Les.:rolleyes:
Ok another little update,minus a few photos that were lost during the build.Grrr
I made the top and bottom panels and stuck them to the frame with J B Weld.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 1024x685.Posted Image
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 685x1024.Posted Image
test fitted my quad XSPC as well.

Sadly i got no pictures of the front,PSU and back panel after they were cut,but i have with them fitted.
The front panel will not be removed so i have,screwed it to the frame and filled the holes,to give a flush finish.
Posted ImageClick this bar to view the full image.Posted Image
Here is the front,PSU and back.You can also see the frame that i fitted around the edge,which will hold my new side panels on.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 685x941.Posted Image
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 676x1024.Posted Image

Next i cut and folded my drivebay panels,which will house the pump/res.
The panel on the right was only a test piece,as i'll be cutting a Dragon in the final version.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 1024x685.Posted Image

Next i cut my mid section,with holes for the Slim Blu-ray drive.I will cut holes for cables and tube ,when i fit my hardware.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 1024x685.Posted Image

That's enough for today Posted Image

Andy

#5
fido

fido

    Level 9

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,077 posts
Can you still call it a v2000 now :P?

Will be quality im sure, you have envy inducing metal skillz ;)

#6
spoon

spoon

    Level 10

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 5,077 posts
You can't mate but certain "members" like to hold on to them ;)


Good work so far Andy, bit of a fresh air on these forums really...

My Blog => http://adriank.org


#7
ACE1981

ACE1981

    WaterCooling/Modding ftw

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,515 posts
looking good Andy knew it would look good but those dragons look awesome

yeah spoon ur right fresh air the forum has been a dead lately

Lian li V'Dragon New Lian Li lol

andy could'nt u make custom cases to sell ?

PROJECT EARTH


#8
andybones12

andybones12

    Level 10

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 4,149 posts

Will be quality im sure, you have envy inducing metal skillz ;)


Cheers Fido,I'm just an amateur in this modding game,but will do my best ;)

Good work so far Andy, bit of a fresh air on these forums really...

Thx Adrian,ye it's a bit quiet,but we can't help that,times they are a changing.
hmm Bob Dylan

andy could'nt u make custom cases to sell ?

I just don't have the time Les,work takes all my time,this is just a hobby.
I still do jobs for members on here.Pablo still wants stuff made,along with PAZ45 ;)

Ok just a few shots of parts and hardware.
Made a Quad rad holder.
Posted Image
Fitted my Thermochill TA120.4,which i got from Aaron,got a little dent but was a great deal,thx Aaron ;)
Posted Image
I'm using
T.B.Silence Posted Image
and coolermaster sickelflow fans,Posted Imagemainly because they are spares from other builds,and i want to keep the cost down.

All braided and fitted to rads.
Posted Image

That's enough for today,of to pub later to watch the blues beat the chelsea blues.lol

Andy


Andy

#9
subset7

subset7

    Level 10

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,117 posts
That is a severe bit of cutting Andy :shock: looking good though,i'll be watching this :),i'm using TB Silence fans on my HTPC,i should start a build log aswell,the forum has been pretty quiet for a while.

#10
Aaron

Aaron

    There's ALWAYS room for a quad rad!

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,080 posts
:o Didnt have a dent when it left me :( Stupid postmen!


Project 'S'

Cosmos S - i7 920 DO @ 4Ghz - Gigabyte EX58-UD5
GTX 275 - 6Gb OCZ Gold 1600Mhz
PA120.4 - XSPC DDCBAYTWO - HF Nickel - EK FB



I love chicken chargrills


#11
skully

skully

    Level 3

  • Members
  • PipPipPipPip
  • 214 posts
Nice one Andy looking good B)

#12
andybones12

andybones12

    Level 10

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 4,149 posts
Cheers guys ;)
A small update.I fitted all my parts so far, in the case,all fits nicely.
Posted Image
Posted Image
I have since cut my dragon bay panel,to replace the temp one.Fitted the pump and put some red Frosted acrylic on.
I will be using some lighting in the bay drive.
Posted Image
Posted Image
Posted Image

That's all folks

Andy

#13
ACE1981

ACE1981

    WaterCooling/Modding ftw

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,515 posts
That's all folks

Andy
[/quote]


Drool lols

uh um i see ur implementing my front ideas with lights :P edit looked again and it red perspex :) nice idea :D

looks wicked though uve restored the case perfect :D

PROJECT EARTH


#14
fido

fido

    Level 9

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,077 posts
Liking the front panel, looks good with red acrylic ;)

Also, would you be interested in some mobo blocks for your X58 LE?? I'll have to dig around for mounting screws etc and theres some light marks on the acetal bits but not that bad really. You can have em for postage if you want ;)

#15
andybones12

andybones12

    Level 10

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 4,149 posts
long way to go Les,but trying my best.;)
Fido,that is my brothers mobo in there.I'm just using it t test fit.
Thx for the offer,but i won't be needing them ;)

Andy

#16
andybones12

andybones12

    Level 10

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 4,149 posts
A little update.
Been really busy at work,so it's been slow getting my work done.
I got my side panels cut.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 1024x685.Posted Image
Next i fitted my fittings to hold the side panels on.
I drilled,tapped,then filled the front with Quicksteel (best stuff i ever used for filling)
sanded it all off,then put some filler primer on,ready for the powder coaters.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 1024x651.Posted Image
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 685x1024.Posted Image

Test fitted them.Need to do a little sanding along the edges,to allow for the paint when it goes to the powder coaters.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 685x994.Posted Image
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 768x955.Posted Image

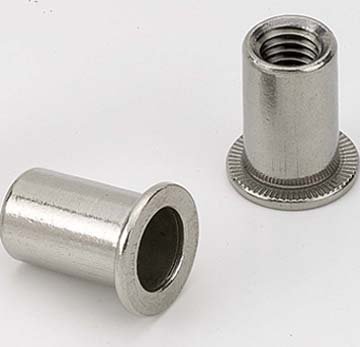

Will be bringing it into work on Monday to fit the M4 Avdels,to screw the side panels to the frame.
Posted Image

I would use M3,which is the standard for thumbscrews,but our tool at work has got a broken M3 fitting.Grrr
So i will have to make my own M4 thumbscrews,as they don't bloody sell them anywhere.
I found some of these fittings at work,so decided to make my own Mnpctech style feet Posted Image
some of these,
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 1024x734.Posted Image
then glued them together,drilled and tapped for M4 screws, to make these.
Posted ImageThis image has been resized. Click this bar to view the full image. The original image is sized 953x768.Posted Image

Well that's it for a while.Pondering on the hardware now.Just ordered a new mobo.MSI Z77A-GD65
Posted Image

Will be changing red acrylic to blue,to match the fans and mobo.

Andy

#17
fido

fido

    Level 9

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 1,077 posts
This is looking sweet mate, cant wait to see it painted up. Also nice mobo, take it you got it from Aria? Considering it myself :D

Btw, you should post your builds up on other forums too, with your skills you could easy get a sponsor or 3.

#18
skully

skully

    Level 3

  • Members
  • PipPipPipPip
  • 214 posts
Nice one Andy its looks awesome B)

#19
BulletMagnet

BulletMagnet

    Level 7

  • Members
  • PipPipPipPipPipPipPipPip
  • 652 posts
I like what I see before me =D:
Posted Image

#20
dazza

dazza

    Oh Hai!

  • Members
  • PipPipPipPipPipPipPipPipPipPip
  • 2,083 posts
Top notch job as allways andy :rolleyes:
